Frame
Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Headset
Acros IS52/40 ICR

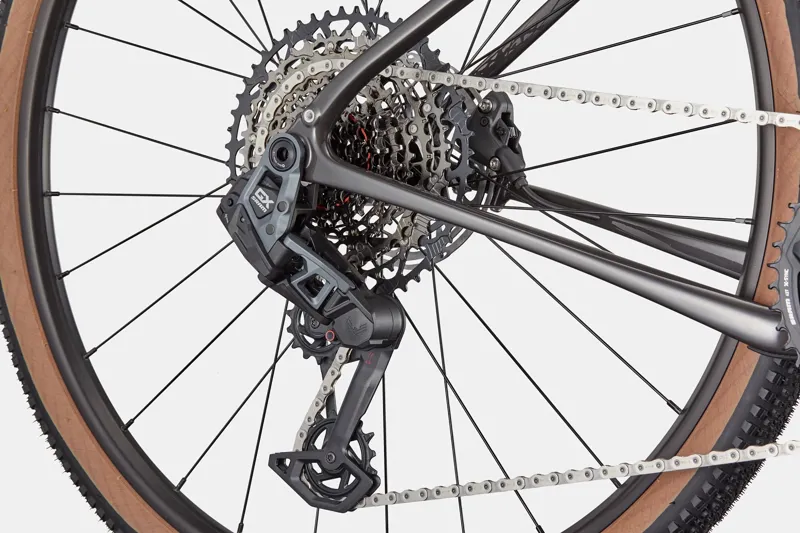

Rear Derailleur
SRAM GX Eagle AXS, T-Type
Shifters
SRAM Apex AXS, 12-speed
Chain
SRAM GX Eagle Transmission, 12-speed

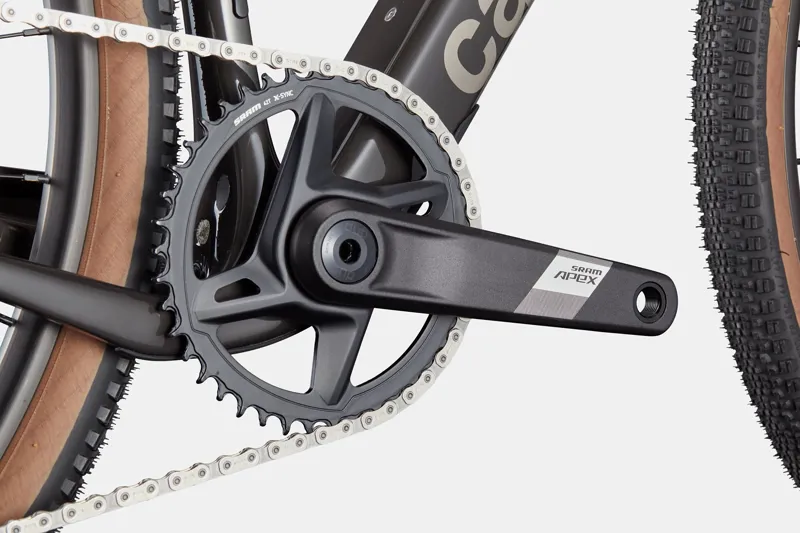

Crank
SRAM Apex DUB Wide, 42T
Rear Cogs
SRAM XS-1270, 10-52, T-Type, 12-speed
Bottom Bracket
SRAM DUB BSA Road 68 Wide
Brakes
SRAM Apex hydraulic disc, 160/160mm CenterLine centerlock rotors
Brake Levers
SRAM Apex AXS hydraulic disc
Front Hub
Shimano TC500, 12x100mm centerlock
Rear Hub
Shimano TC500, 12x142mm centerlock
Rims
WTB KOM Team i25 TCS, 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tyre Size
45
Wheel Size
700c
Tyres
WTB Riddler TCS Light, 700x45c, tubeless ready

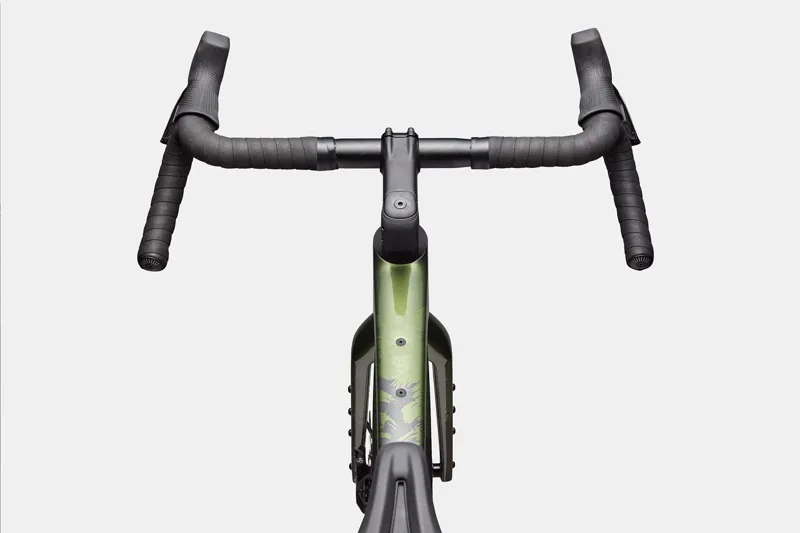

Handlebar
Cannondale 2 ShortDrop, 7050 alloy, 12 deg flare drop
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Tape
Cannondale Knurl Cork, 2.7mm
Saddle
Fizik Terra Argo X7
Seatpost
Cannondale 2 Carbon, 27.2x350mm (47-58), 400mm (61)
Wheel Sensor
Cannondale Wheel Sensor
Extra
Large StashBag downtube storage bag, tubeless valve stems, SRAM AXS charger
KingPin
The innovative gravel rear suspension is light, simple, and effective. A thru-axle pivot in the seat tube allows the rear triangle and seatpost of the bike to flex vertically, delivering up to 30mm of bump-smoothing travel.

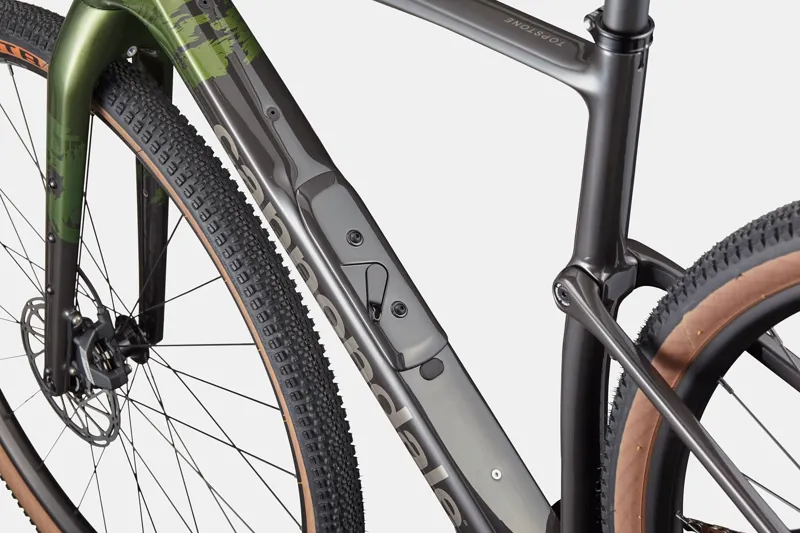

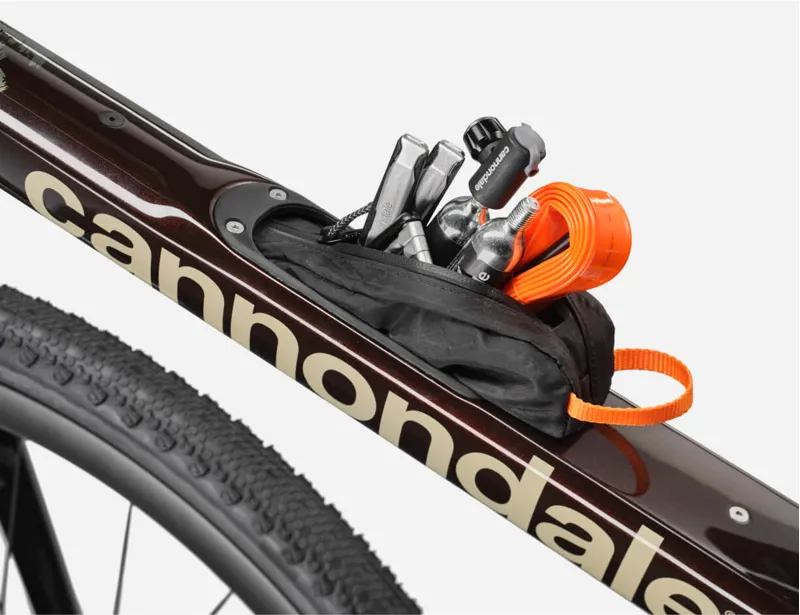

StashPort
StashPort is Cannondale's take on a downtube storage system, accessed beneath the water bottle cage. Every bike includes StashBag, a specially designed bag for your essentials.
Tyre Clearance
Topstone Carbon fits tyres with a maximum measured width of up to 52mm for the frame and 56mm for the rigid fork. Lefty Oliver's tyre clearance is optimized for a 700x47mm tire, with height being the primary limiting factor.
Dropper Ready
Built to accept an internally-routed 27.2mm dropper seatpost, which shouldn´t be a surprise on a bike this capable.
Proportional Response
Tuned for the rider, the size-specific construction creates optimal stiffness and compliance for each frame size. So, every rider benefits from the ideal ride feel and comfort of KingPin.
Out Front Steering Geometry
Confident stability meets nimble agility. An extra long fork offset paired with a slack head angle keeps the steering light and lively, yet delivers unreal confidence at speed and in the rough stuff.
Tidy Routing
Internal cable routing throughout the frame, combined with Conceal Stem, delivers a tidy, integrated look.
